DIY Ambilight solutions have gained popularity among tech enthusiasts and home theater enthusiasts, offering an engaging way to enhance the visual experience of watching TV or playing video games. Ambilight, short for "ambient lighting," refers to the technique of projecting colors and light onto the walls surrounding a display, immersing viewers by extending on-screen visuals beyond the confines of the screen itself.
Originally pioneered by Philips with their Ambilight TV series, the concept has inspired a range of DIY approaches catering to various budgets and skill levels.
These solutions typically involve using LED strips mounted on the back of a television or monitor, which are synchronized to the content on the screen. The primary goal is to mimic and extend the screen's colors, creating an illusion of a larger, more enveloping image. The light dynamically changes in real-time, adapting to the visual content being displayed, which enhances both the aesthetic appeal and immersive experience.
A common setup includes addressable RGB LED strips, a controlling device such as a Raspberry Pi, Arduino, or even a dedicated HDMI controller, and software to manage color synchronization, such as Hyperion or WLED. By capturing the screen's color data, these systems translate the information into corresponding light patterns displayed by the LEDs. This process can either involve analyzing video input in real-time or utilizing software on a computer to determine which colors should be projected.
DIY Ambilight projects allow customization in terms of size, color dynamics, and interactive effects, providing enthusiasts with the creative freedom to personalize and modify their systems. As the home entertainment landscape continues to evolve, DIY Ambilight solutions remain a captivating blend of technology and creativity, elevating visual experiences to new heights.
What Pre-Built Diy Ambilight Kits Exist
Pre-built DIY Ambilight kits offer a convenient way for home enthusiasts to enhance their viewing experience with ambient lighting that syncs with on-screen content. These kits typically include everything needed to set up an Ambilight system, such as LED strips, a controller unit, power supplies, and the necessary cables. The most significant advantage of these kits is that they provide a ready-to-go solution without the need for individual component sourcing or extensive electronics knowledge.
Several companies make popular pre-built kits that cater to different needs and budgets. These kits often come with software compatible with a wide range of devices, such as TVs, computer monitors, or home theater setups. Some kits also support integration with smart home ecosystems, allowing users to control the lighting through voice commands or mobile apps. Major brands in this market include Philips Hue Play HDMI Sync Box, Lightpack, and Govee Immersion kits.

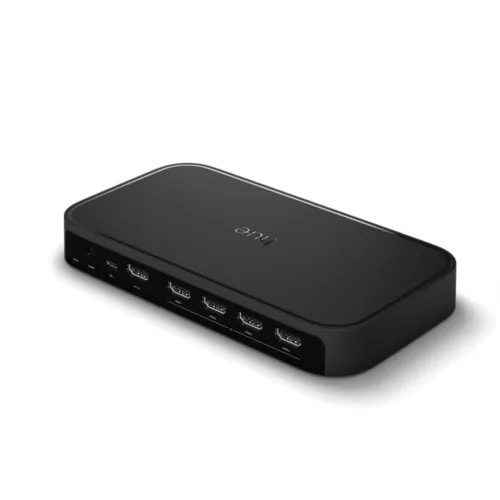

The Philips Hue system is particularly notable for its high-quality lighting and compatibility with a diverse range of smart home integrations. It works by analyzing the HDMI signal and synchronizing the lights accordingly, though it does come at a premium price point.

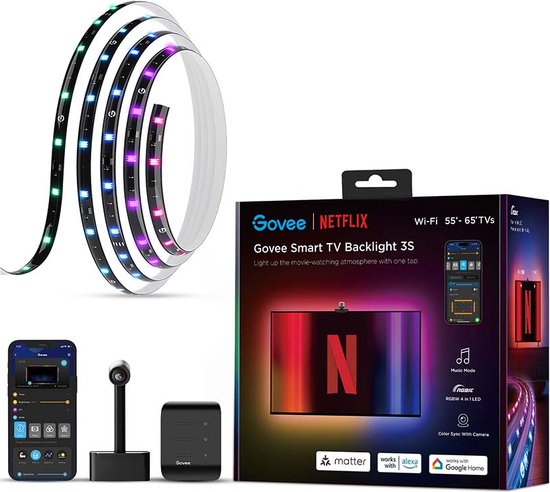

In contrast, more budget-friendly options like the Govee Immersion kit provide a versatile solution that uses a camera to capture screen content, translating that into dynamic LED lighting effects. This method doesn't require an HDMI connection, making it easier to set up but sometimes less precise in color matching. These pre-built kits appeal to various skill levels, from novice to advanced, providing a straightforward way to enjoy an immersive Ambilight experience without extensive customization or technical setup.

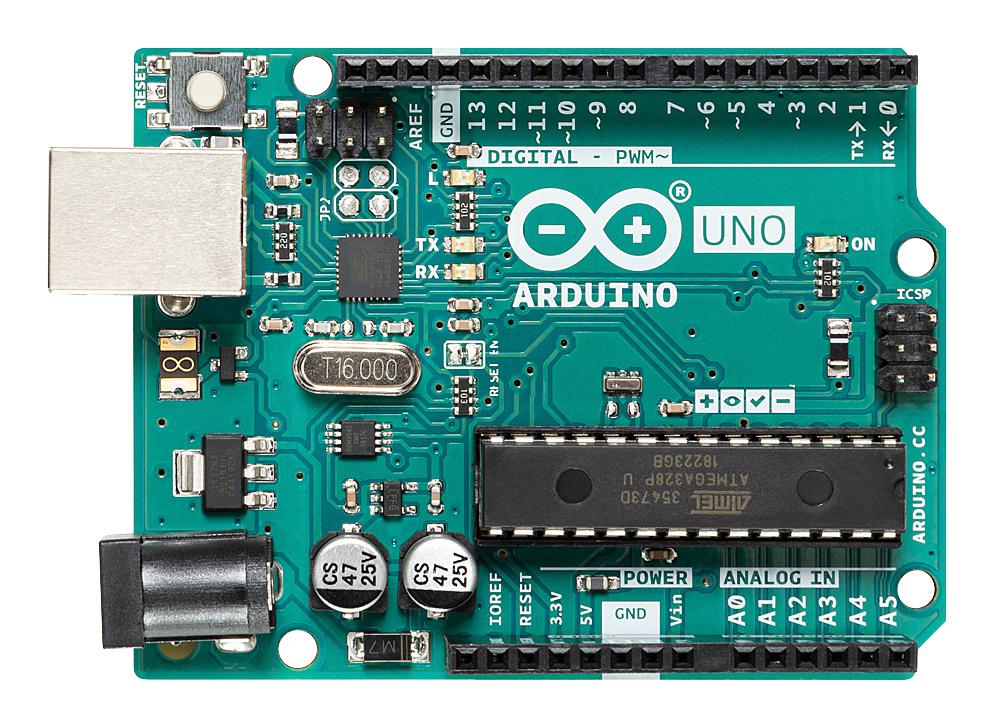

Arduino-based DIY Ambilight systems offer an accessible and customizable solution for enhancing your home entertainment experience. These systems utilize the popular, open-source Arduino microcontroller to control LED strips placed behind your television or monitor, creating an immersive visual experience by mimicking on-screen colors. The primary concept involves capturing the colors displayed on the screen, processing this data through the Arduino, and dynamically adjusting the LED colors in real-time to match the edges of the display.
To set up an Arduino-based Ambilight system, you typically need an Arduino board, an array of individually addressable RGB LED strips, and a means of capturing video data from your screen. The LED strips are affixed around the perimeter of the television or monitor. The most commonly used LEDs for such projects are WS2812B or similar addressable strips, known for their ability to change color independently, providing smooth gradients and color transitions.
A vital component of this setup is software that captures video data from your media source. Programs like Prismatik, Hyperion, or Ambibox are often employed in conjunction with Arduino sketches to process the screen's color information. This data is sent to the Arduino, which communicates with the LED strips to adjust their color output. The Arduino sketches are freely available and customizable to accommodate different screen sizes and LED configurations, allowing for personalized adjustments.
These systems not only enrich movie nights and gaming sessions but also serve as a hands-on learning opportunity. Building an Arduino-based Ambilight enhances understanding of electronics, programming, and the interplay between hardware and software, making it an appealing project for both enthusiasts and newcomers to the DIY electronics sphere.
When it comes to creating a DIY Ambilight setup, software plays a crucial role in achieving the desired lighting effects. Open-source and commercial software options exist, offering varying features and compatibility with hardware setups. One of the most popular open-source software solutions for DIY Ambilight is Hyperion. Hyperion is a comprehensive software that can be run on platforms such as Raspberry Pi, Windows, and Linux.
It captures the screen content, processes it, and generates the appropriate color signals to control the LED strips, which are typically WS2812B or similarly addressable LEDs. Hyperion's customizability, active development community, and extensive documentation make it highly suitable for DIY enthusiasts who like to tweak their systems.
Alternatively, Ambibox is another software solution commonly used with DIY Ambilight setups. It is predominantly used in Windows environments and offers a user-friendly interface that simplifies the setup process. Ambibox's intuitive design allows users to quickly configure settings such as LED layout, color calibration, and screen capture regions. Its support for various capture devices makes it versatile for different needs. The software achieves ambient lighting by analyzing the colors on the screen and dynamically adjusting the LED outputs.
Both Hyperion Hyperion and Ambibox rely heavily on screen capturing techniques to determine the predominant colors being displayed. They utilize direct screen capture or employ specific capture devices that feed the color data back to the software. This approach ensures real-time synchronization between on-screen content and LED illumination, providing an immersive visual experience. Ultimately, the choice between these software solutions for a DIY Ambilight setup depends on the user's specific requirements, technical skill level, and preferred hardware platform.
When working on DIY Ambilight projects, enthusiasts may encounter several common issues that can hinder the overall performance and experience. One frequent problem is incorrect LED placement, which can lead to uneven lighting or inconsistent color projection. Ensuring that LEDs are uniformly spaced and securely attached to the back of the display helps in achieving a seamless visual effect. Another issue lies in faulty power connections or insufficient power supply, often resulting in flickering lights or LEDs not lighting up at all.
Verifying that all connections are secure and utilizing a power supply that matches the requirement of the LED strip is crucial.
Software and calibration errors can also affect the performance of a DIY Ambilight system. Sometimes the software may fail to detect accurate colors or provide delay in lighting changes. This can often be resolved by adjusting the software settings, ensuring the screen capture matches the actual display resolution or updating to the latest software version. Calibration tools typically included in Ambilight software can help fine-tune the color accuracy and response speed.
Compatibility issues can arise, particularly if the lights are not synchronized with the media source. Ensuring the device and the Ambilight system are correctly synchronized with the media center or PC through HDMI or other connections is necessary. If using third-party applications or hardware, checking for updates or compatibility patches can resolve many challenges.
By systematically checking these potential trouble spots, ensuring proper component connections, updating software, and calibrating settings, many common DIY Ambilight issues can be effectively remedied, enhancing your immersive viewing experience without significant frustration.
